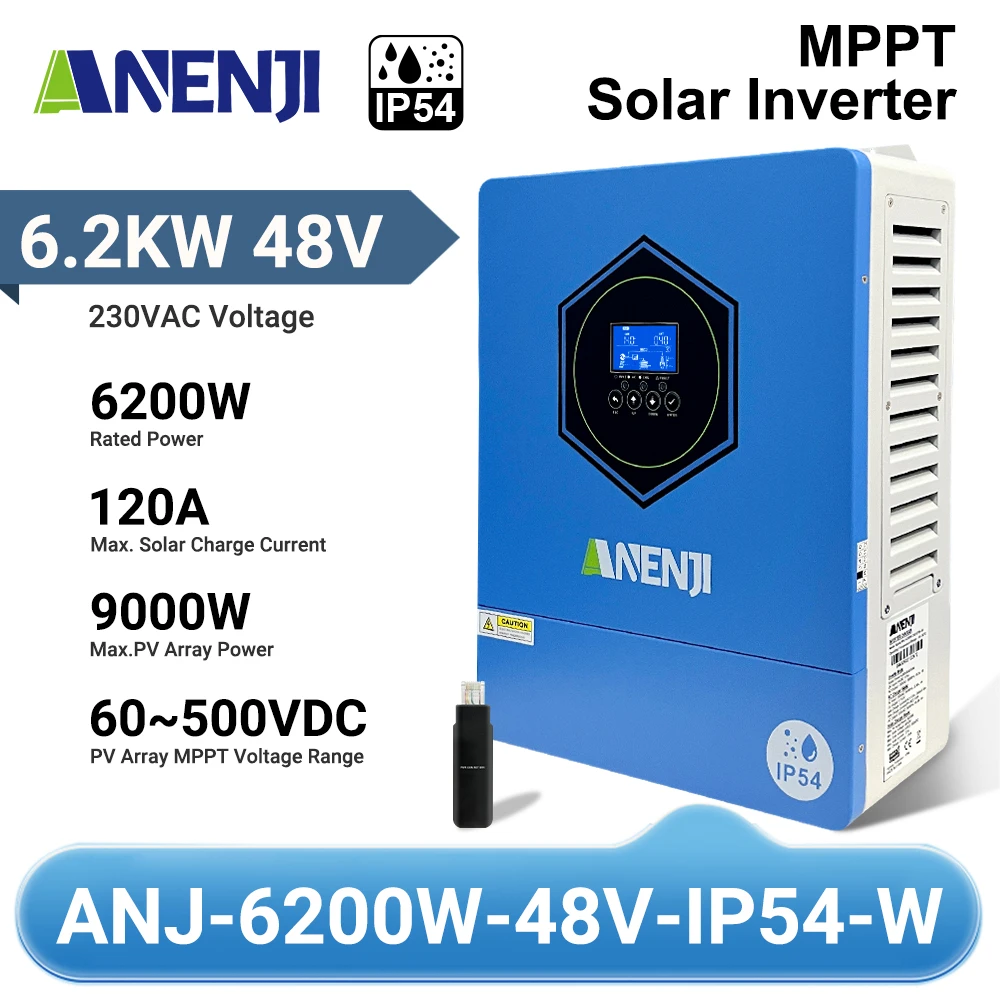

Anenji 6.2kW 48V Hybrid Solar Inverter Dual output With WiFi IP54

About this product

• Product Manual
• ANJ-6200W-48V-IP54-W
• MODEL
• ANJ-6200W-48V-IP54-W
• Input Voltage Waveform
• Sinusoidal (utility or generator)
• Nominal Input Voltage
• 230Vac
• Low Loss Voltage
• 170Vac+7V (UPS) 90Vac+7V (Appliances)
• Low Loss Return Voltage
• 180Vac±7V (UPS);100Vac+7V (Appliances)
• High Loss Voltage
• 280Vac±7V
• High Loss Return Voltage
• 270Vac±7V
• Max AC Input Voltage
• 300Vac
• Nominal Input Frequency
• 50Hz / 60Hz (Auto detection)
• Low Loss Frequency
• 40±1Hz
• Low Loss Return Frequency
• 42±1Hz
• High Loss Frequency
• 65±1Hz
• High Loss Return Frequency
• 63±1Hz
• Output Short Circuit Protection
• Battery mode: Electronic Circuits
• Efficiency (Line Mode)
• >95% (Rated R load, battery full charged)
• Transfer Time
• 10ms typical (UPS); 20ms typical(Appliances)
• Rated Output Power
• 6.2KVA/6.2KW
• Dual output function
• Yes
• Max.main output power
• 6.2KVA/6.2KW
• Max.second output power
• 6.2KVA/6.2KW
• Output Voltage Waveform
• Pure Sine Wave
• Output Voltage Regulation
• 230Vac+5%
• Output Frequency
• 50Hz or 60Hz
• Peak Efficiency
• 94%
• Surge Capacity
• 2* rated power for 5 seconds
• Nominal DC Input Voltage
• 48Vdc
• Cold Start Voltage
• 46.0Vdc
• Utility Charging Mode
• Max Charging Current(PV+AC)
• 120Amp
• Max Charging Current(AC)
• 120Amp
• Flooded Battery
• 58.4Vdc
• AGM / Gel Battery
• 56.4Vdc
• Floating Charging Voltage
• 54Vdc
• Overcharge Protection
• 64Vdc
• Battery reverse connection protection
• No
• Charging Algorithm
• 3-Step

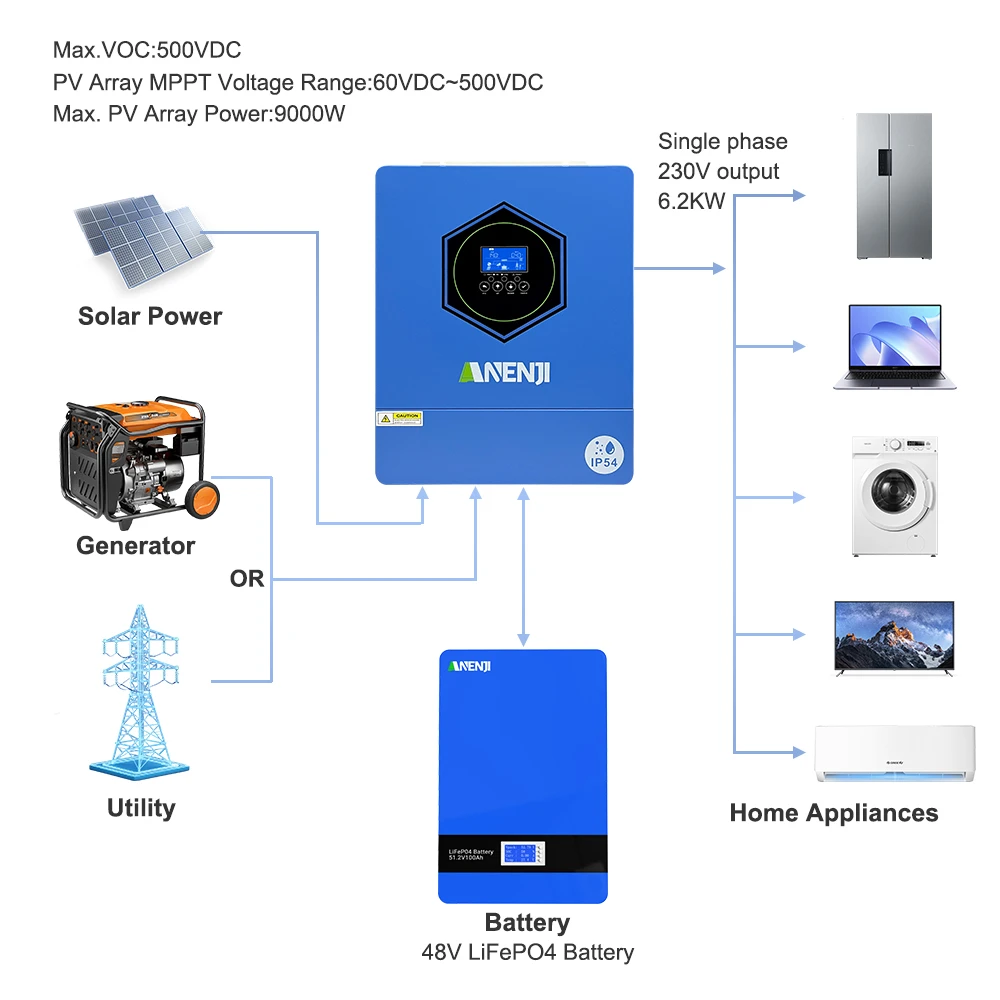

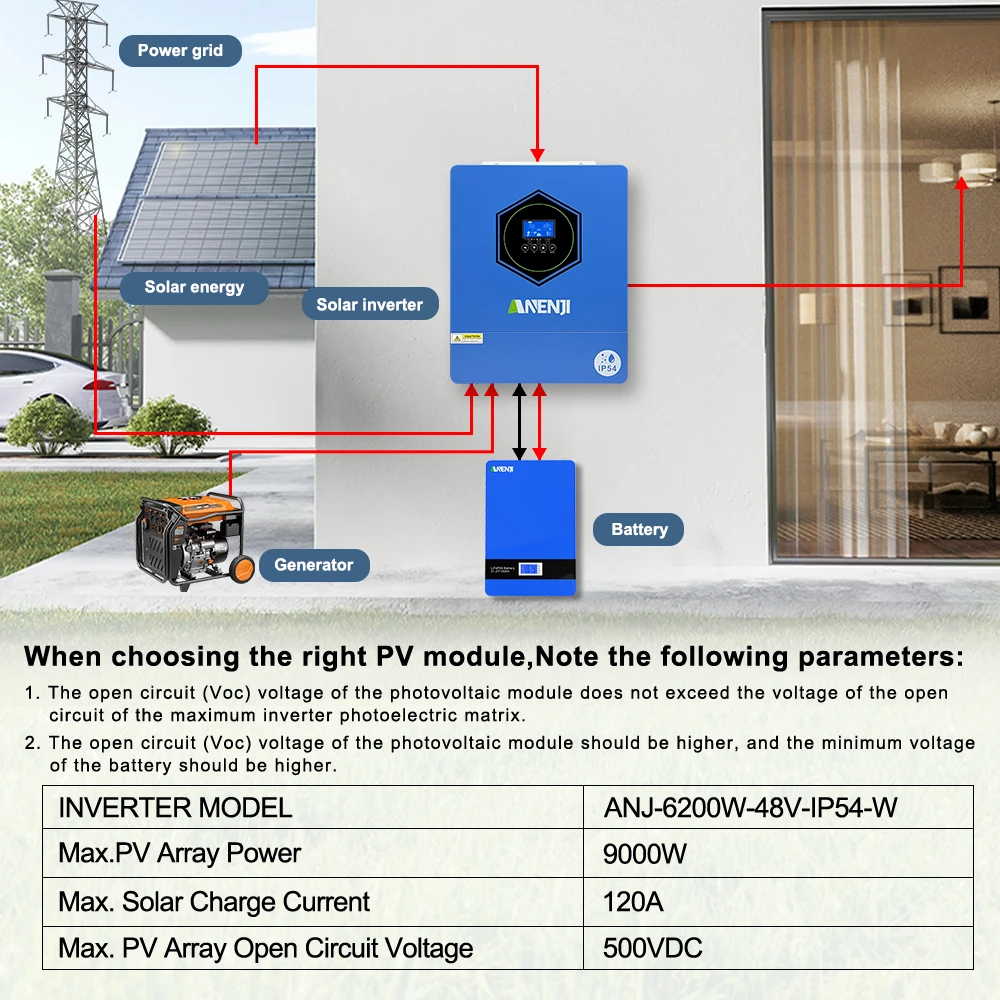

• Solar Input
• Rated Power
• 9000W
• Max. PV Array Open Circuit Voltage
• 500Vdc
• PV Array MPPT Voltage Range
• 60Vdc~500Vdc
• Max. Input Current
• 27A
• Max.Charging Current(PV)
• 120A
• General Specifications
• Operating Temperature Range
• -10°C to 55°C
• Storage temperature
• -15°C~ 60°C
• Humidity
• 5% to 95% Relative Humidity (Non-condensing)
• Net Weight, kg
• 7.2
