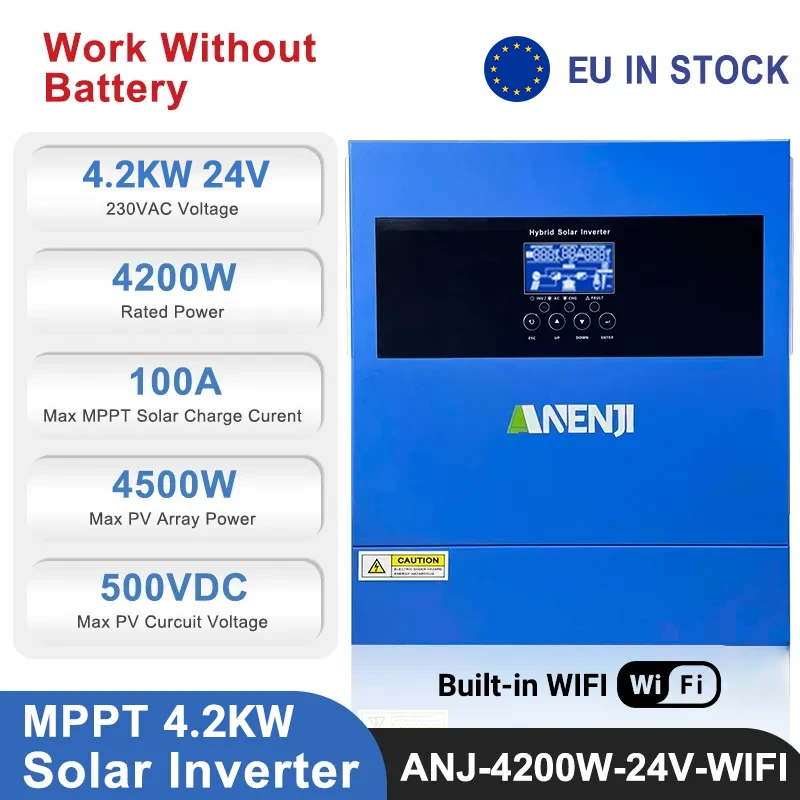

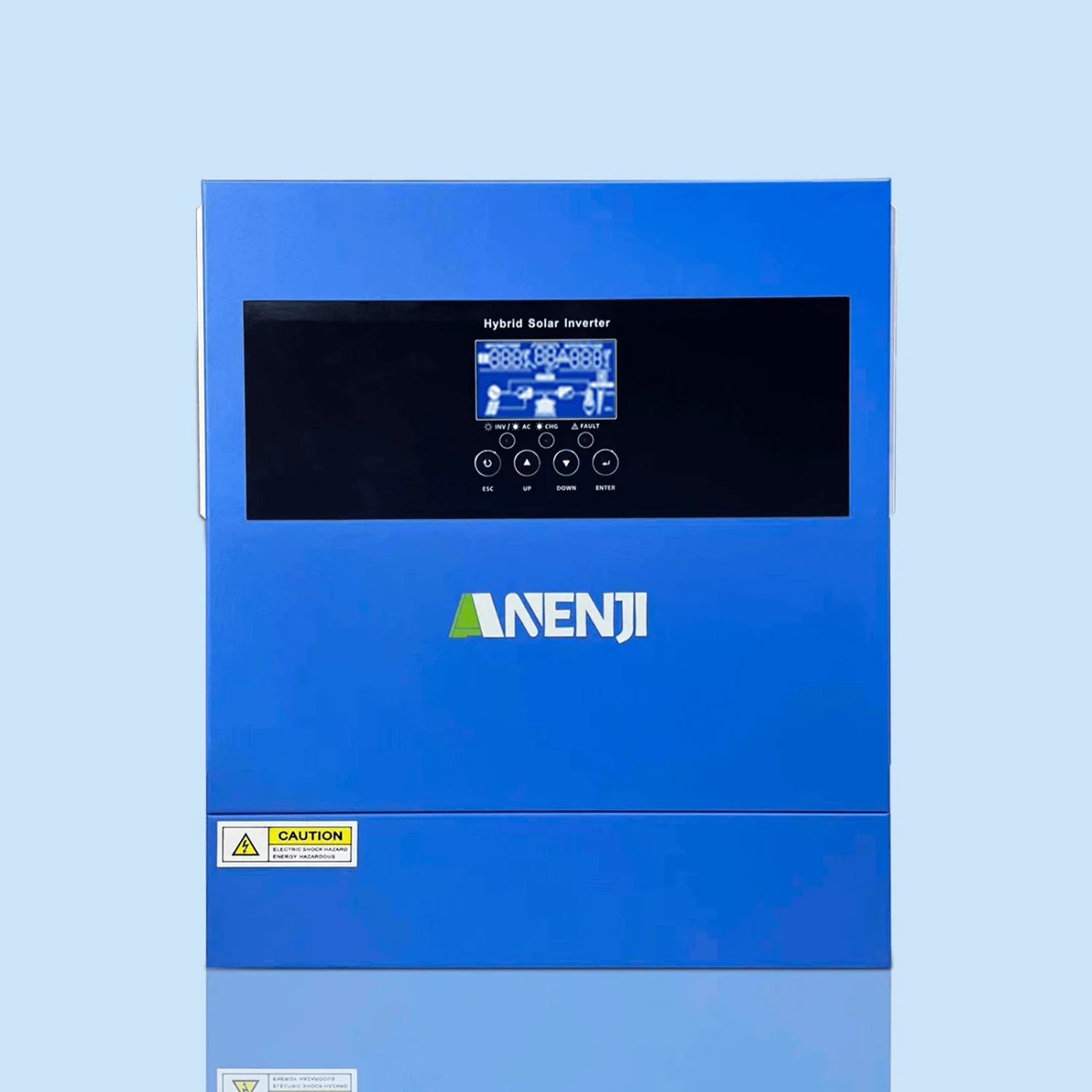

Anenji 4200W 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI

About this product

• Click to download ANENJI 4.2KW 24V Solar Inverter Manual
• 4200W 24V Hybrid Solar Inverter Features:
• Pure Sine Wave Output: Provides stable pure sine wave output, suitable for various sensitive devices.
• Power Factor 1.0: Ensures optimal energy utilization and high-efficiency power transmission.
• PV Input Voltage 60Vdc-500Vdc: Supports a wide range of solar input voltages.
• Built-in 100A MPPT Controller: Integrates Maximum Power Point Tracking technology to maximize the efficiency of solar panels.
• Lithium Battery Activation Function: Can be triggered by mains or PV, ensuring efficient activation and maintenance of lithium batteries.
• Compatible with LiFePO4 Battery: Compatible with LiFePO4 batteries via RS485 interface, ensuring longer lifespan and higher safety standards.

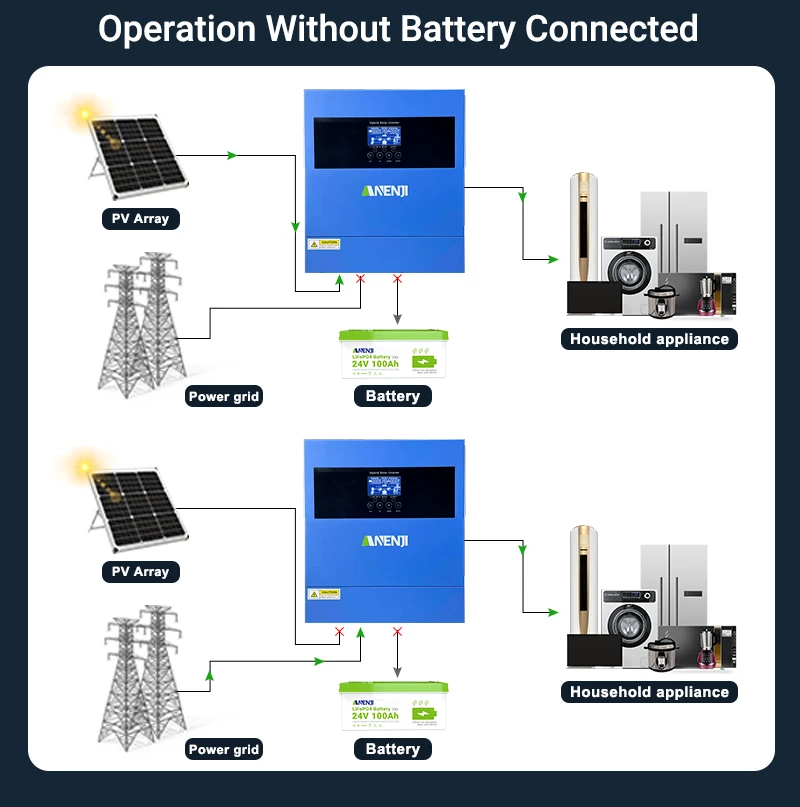

• Capable of Operating Without Battery: Functions normally even without a battery, ensuring continuous power supply.
• Detachable Dust Cover: Suitable for harsh environments, providing additional protection.
• WiFi Remote Monitoring: Supports WiFi remote monitoring for convenient real-time system status updates and control.
• Multiple Output Priority Support: Configurable output priority settings including UTL, SOL, SBU, and SUB for flexible power management.
• Battery Optimization Function (EQ): Enhances battery performance and extends battery lifecycle.
• MODEL
• ANJ-4000W-24V-WIFI
• Capacity
• 4.2KVA/4.2KW
• Parallel Capability
• NO
• INPUT
• Nominal Voltage
• 230VACA
• Acceptable Voltage Range
• 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
• Frequency
• 50/60 Hz (Auto sensing)
• OUTPUT
• Nominal Voltage
• 220/230VAC+5%
• Surge Power
• 7000VA
• Frequency
• 50/60Hz
• Waveform
• Pure sine wave
• Transfer Time
• 10ms(For personal Computer);20ms(For Home Appliances)
• Peak Effciency (PV to INV)
• 96%
• Peak Effciency (Battery to INV)
• 93%
• Overload Protection
• 5s@>=140%oad; 10s@110%-140% load
• Crest Factor
• 3:01
• Admissible Power Factor
• 0.6-1(inductive capacitive)
• BATTERY
• Battery Voltage
• 24VDC
• Floating Charge Voltage
• 27VDC
• Over Charge Protection
• 33VDC
• Charging Method
• CC/cV
• ithium Battery Activation
• YES
• Lithim batteryCommunication
• YES(RS485)
• SOLAR CHARGER & AC CHARGER
• Solar Charger TYPE
• MPPT
• Max. PV Array Power
• 4500W
• Max. PV Array Open Circuit Voltage
• 500VDC
• PV Array MPPT Voltage Range
• 60~500VDC
• Max. Solar input Current
• 15A
• Max. Solar Charge current
• 100A
• Max. AC Charge Current
• 80A
• Max. Charge Current(PV+AC)
• 100A
• PHYSICAL
• Dimensions,DxWx H(mm)
• 358X295X100
• Package DimensionsDxWxH(mm
• 465X380X175
• Net Weight(kgs)
• 7
• Communicatlon Interface
• RS485
• ENVIRONMENT
• Operating Temperature Range
• -10°C to 50°C
• Storage temperature
• -15°C~60°C
• Humidity
• 5% to 95% Relative Humidity(Non-condensing)
• Transforming Power with Safety and Adaptability
• Multiple protection mechanisms
• Short circuit protection, overload protection, over-temperature protection, reverse connection protection... more secure operation
• Real-time monitoring ofinverter status
• Built-in WiFi module, allowing real-time monitoring of the inverter'soperating status via a mobile app. Search for and download theapp named "Smart Ess" from the Google Play Store.
