Anenji 6KW 48V Hybrid Grid Tie Solar Inverter Dual Outputs Built-in WIFI

About this product

• In stock at the German warehouse.
• Introduction
• ANENJI 6KW 48V MPPT Hybrid Grid Tie Solar Inverter can provide power to connected loads by utilizing PV power, utility power and battery power. Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge battery. Never connect the positive and negative terminals of the solar panel to the ground.
• Main Features:
• Dual output for smart load management（There are two outputs available. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. It facilitates users smart load control）
• Customizable status LED ring with RGB lights
• Touchable button with 4.3" coloured LCD
• Supports USB On-the-Go function
• Data log events stored in the inverter
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Built-in Wi-Fi for mobile monitoring (App is available)
• Reserved communication port for BMS
• Parallel operation up to 9 units
• MODEL
• ANJ-V-IV-5.6KW
• ANJ-V-IV-6KW-TW
• PHASE
• 1-phase in / 1-phase out
• Maximum PV Input Power
• 6000W
• 6500W
• Rated Output Power
• 5600W
• 6000W
• Maximum Charging Power
• 6000W
• 6000W
• GRID-TIE OPERATION
• PV INPUT (DC)
• Nominal DC Voltage / Maximum DC Voltage
• 360 VDC / 450 VDC
• 360 VDC / 500 VDC
• Start-up Voltage / Initial Feeding Voltage
• 110VDC / 120 VDC
• 120VDC / 150 VDC
• MPP Voltage Range
• 120 VDC ~ 430 VDC
• 120 VDC ~ 430 VDC
• Number of MPP Trackers/Max. Input Current
• 1 / 27 A
• 1 / 27 A
• GRID OUTPUT (AC)
• Nominal Output Voltage
• 220/230/240 VAC
• Output Voltage Range
• 184-264.5 VAC or 195.5-253 VAC (Selectable)
• Nominal Output Current
• 24.3A
• 26.1A
• Power Factor
• > 0.9
• EFFICIENCY
• Maximum Conversion Efficiency (DC/AC)
• 96%
• 95%
• OFF-GRID OPERATION
• AC INPUT
• AC Start-up Voltage / Auto Restart Voltage
• 120 - 140 VAC / 180 VAC
• Acceptable Voltage Range
• 90 - 280 VAC or 170 - 280 VAC
• Maximum AC Input Current
• 40 A
• 40 A
• PV INPUT (DC)
• Maximum DC Voltage
• 450 VDC
• 500 VDC
• MPPT Voltage Range
• 120 VDC ~ 430 VDC
• 120 VDC ~ 430 VDC
• Number of MPP Trackers/Max. Input Current
• 1 / 27 A
• 1 / 27 A
• BATTERY MODE OUTPUT (AC)
• Nominal Output Voltage
• 220/230/240 VAC
• Output Waveform
• Pure sinewave
• Efficiency (DC to AC)
• 93%
• 93%
• HYBRID OPERATION
• PV INPUT (DC)
• Nominal DC Voltage / Maximum DC Voltage
• 360 VDC / 450 VDC
• 360 VDC / 500 VDC
• Start-up Voltage / Initial Feeding Voltage
• 110VDC / 120 VDC
• 120VDC / 150 VDC
• MPP Voltage Range
• 120 VDC ~ 430 VDC
• 120 VDC ~ 430 VDC
• Number of MPP Trackers/Max. Input Current
• 1 / 27 A
• 1 / 27 A
• GRID OUTPUT (AC)
• Nominal Output Voltage
• 220/230/240 VAC
• Output Voltage Range
• 184-264.5 VAC or 195.5-253 VAC (Selectable)
• Nominal Output Current
• 24.3A
• 26.1A
• AC INPUT
• AC Start-up Voltage / Auto Restart Voltage
• 120 - 140 VAC / 180 VAC
• Acceptable Voltage Range
• 90-280 VAC or 170-280 VAC
• Maximum AC Input Current
• 40A
• 40A
• BATTERY MODE OUTPUT (AC)
• Nominal Output Voltage
• 220/230/240 VAC
• Efficiency (DC to AC)
• 93%
• 93%
• BATTERY & CHARGER
• Nominal DC Voltage
• 48 VDC
• 48 VDC
• Maximum Charging Current
• 120A
• 120A
• Maximum Solar Charging Current
• 120A
• 120A
• Maximum AC Charging Current
• 120A
• 120A
• GENERAL
• PHYSICAL

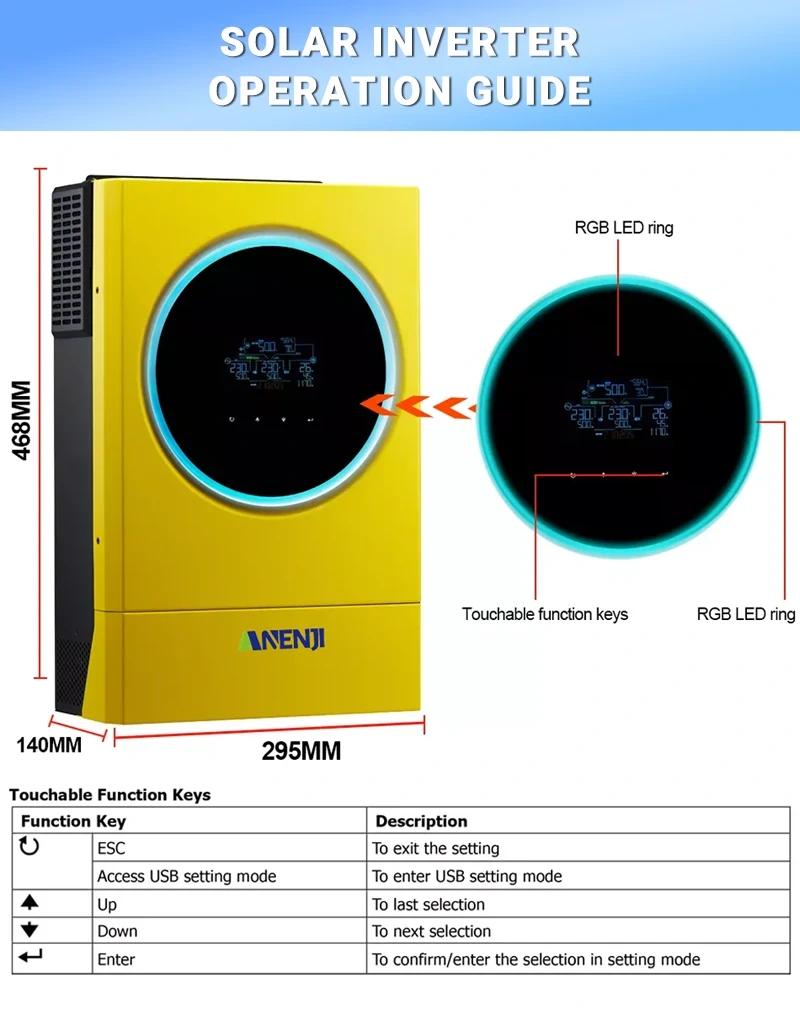

• Dimension, D X W X H (mm)
• 140 x 295 x 468
• Net Weight (kgs)
• 12
• 12
• INTERFACE
• ParallelFunktion
• Yes, 9 units
• Communication Port
• USB/RS232/RS485/WiFi/Dry contact
• ENVIRONMENT
• Operating Humidity
• 0~90% RH (Non-condensing)
• Operating Temperature
• -10 to 50ºC
