Anenji

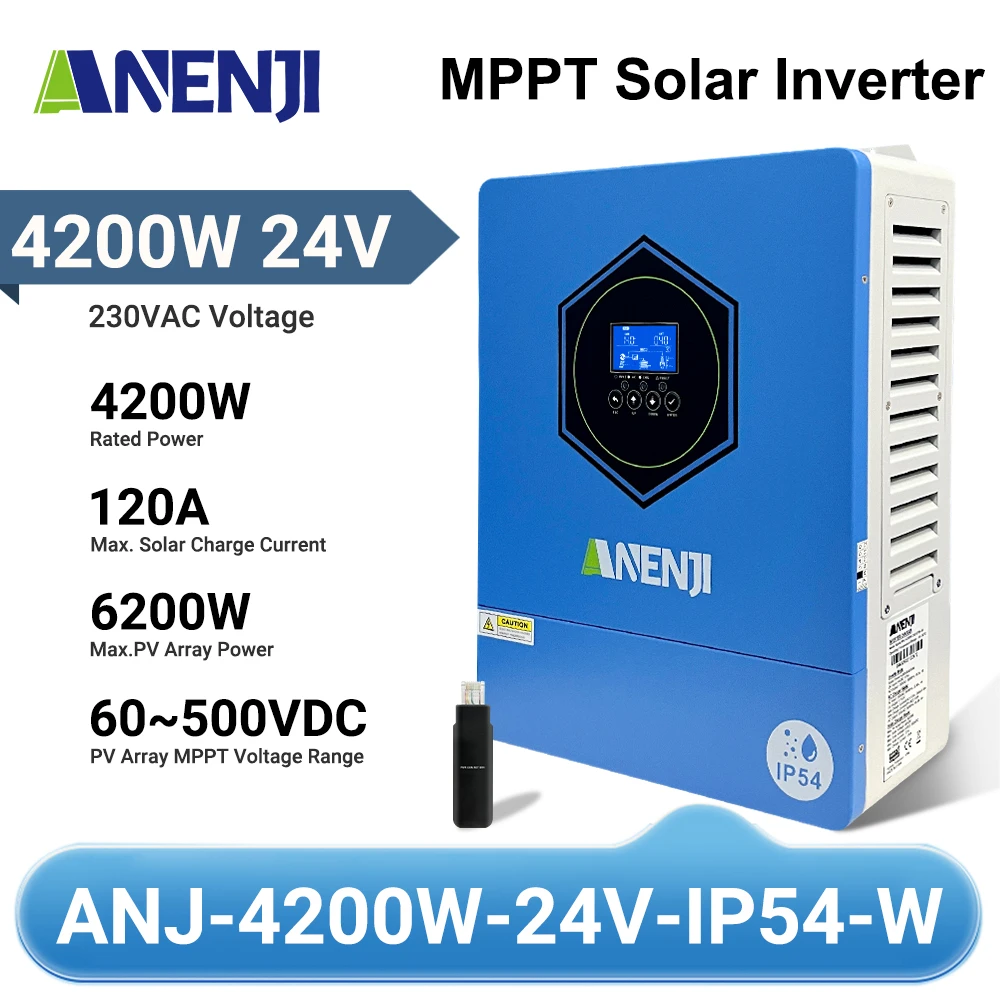

Anenji 4.2kW 24V Hybrid Solar Inverter Dual output With WiFi IP54

SKU 120202/0016

Visit the Anenji store

GHS 4,294.30

Trade price · excl. delivery

AvailabilityOut of stock

Lead time2–3 days

DeliveryFREE

About this product

Manual: ANJ-4200W-24V-IP54-W
Model
ANJ-4200W-24V-IP54-W
Input Voltage Waveform
Sinusoidal(utilityorgenerator)
Nominal Input Voltage
230Vac
Low Loss Voltage
170Vac±7V(UPS)90Vac±7V(Appliances
Low Loss Return Voltage
180Vac±7V(UPS);100Vac±7V(Appliances)
High Loss Voltage
280Vac±7V
High Loss Return Voltage
270Vac±7V
Max ACInput Voltage
300Vac
Nominal Input Frequency
50Hz/60Hz（Autodetection)
Low Loss Frequency
40±1Hz
Low Loss Return Frequency
42±1Hz
High Loss Frequency
65±1Hz
High Loss Return Frequency
63±1Hz
Output Short Circuit Protection
Batterymode:ElectronicCircuits
Efficiency(LineMode)
>95%（RatedRload,batteryfullcharged)
Transfer Time
10mstypical(UPS);20mstypical(Appliances)
Rated Output Power
4.2KVA/4.2KW
Dual output function
Yes
Max.main output power
4.2KVA/4.2KW
Max.second output power
4.2KVA/4.2KW
Output Voltage Waveform
PureSineWave
Output Voltage Regulation
230Vac±5%
Output Frequency
50Hz or 60Hz
Peak Efficiency
94%
Surge Capacity
2* rated power for 5 seconds
Nominal DC Input Voltage
24Vdc
Cold Start Voltage
23.0Vdc
Utility Charging Mode
Max Charging Current(AC)
120Amp
Max Charging Current(PV+AC)
120Amp
Flooded Battery
29.2Vdc
AGM/Gel Battery
28.2Vdc
Floating Charging Voltage
27Vdc
Overcharge Protection
32Vdc
Battery reverse connection protection
No
Charging Algorithm
3-Step

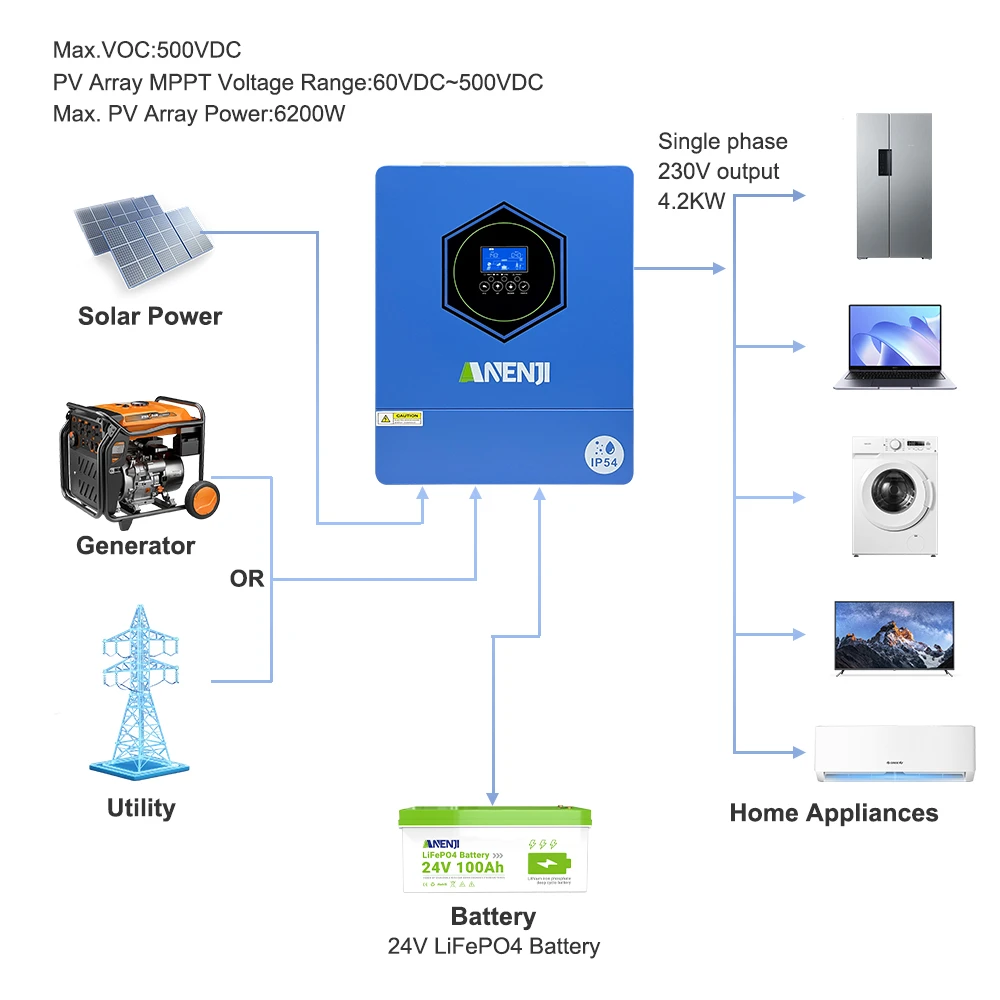

Solar Input
Rated Power
6200W
Max. PV Array Open Circuit Voltage
500vdc
PV Array MPPT Voltage Range
60Vdc~500Vdc
Max. Input Current
27A
Max. Charging Current(PV)
120A
General Specifications
Operating Temperature Range
-10°C to 55°C
Storage temperature
-15°C~60°C
Humidity
5% to 95% Relative Humidity (Non-condensing)
Dimension(D*W*H), mm
422x334x126
Net Weight, kg
9.05

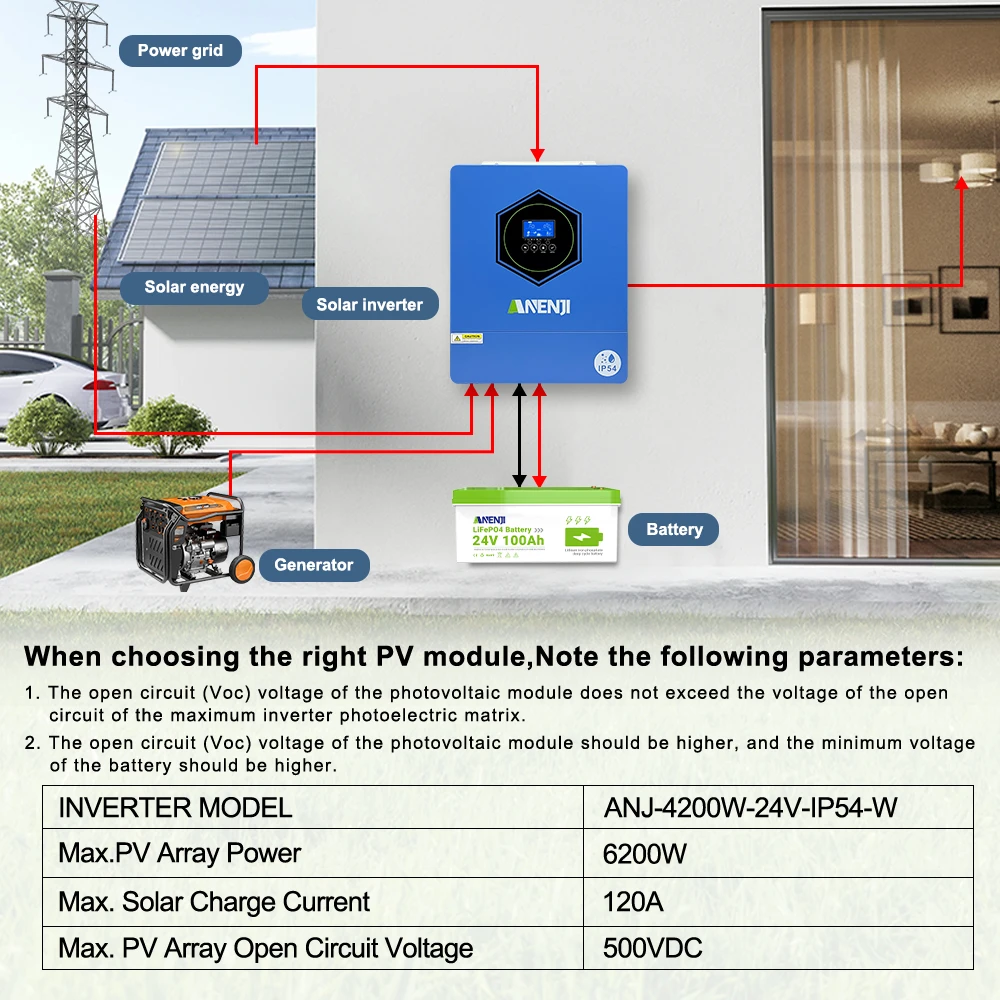

Feed into the grid
If solar energy is suficientto all connected loads and charge battery, the solar energy could feedback to the grid.
If solar enery is notsufficient to power all connected loads,utility energy will supply power to the loads at the same time
Smart App Management
External Wi-Fi module, allowing real-time monitoring of the inverter's operating status via a mobile app.
Search forand download the app named "Smart Ess" fromthe Google Play Store
360° All-Round Protection
Safeguarding Your Inverter and Your Home
