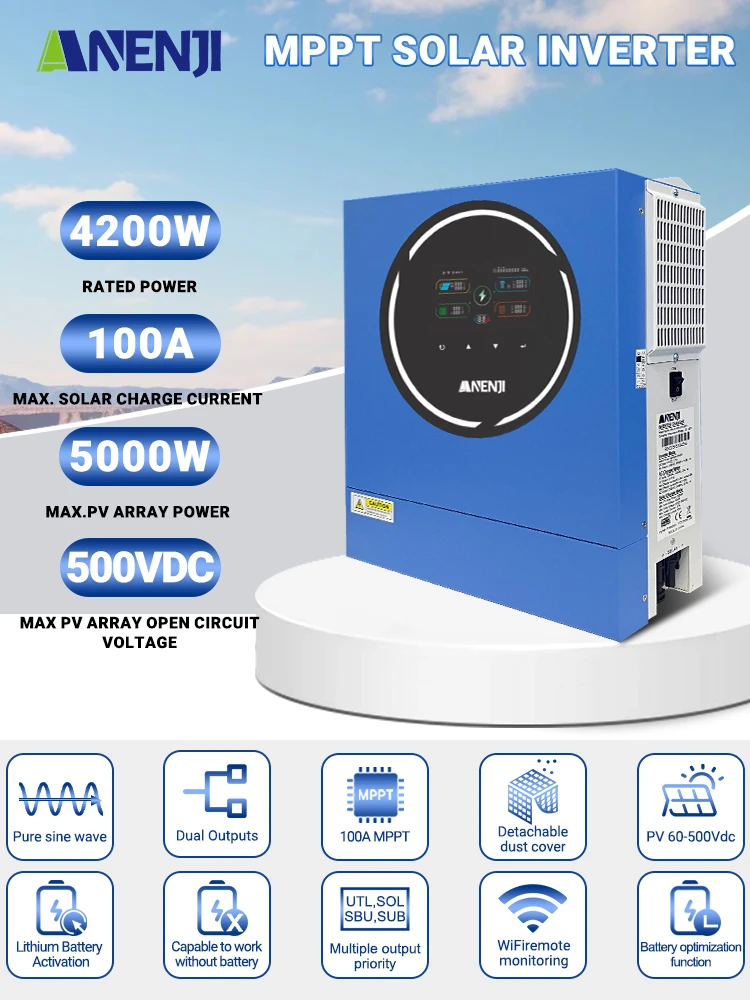

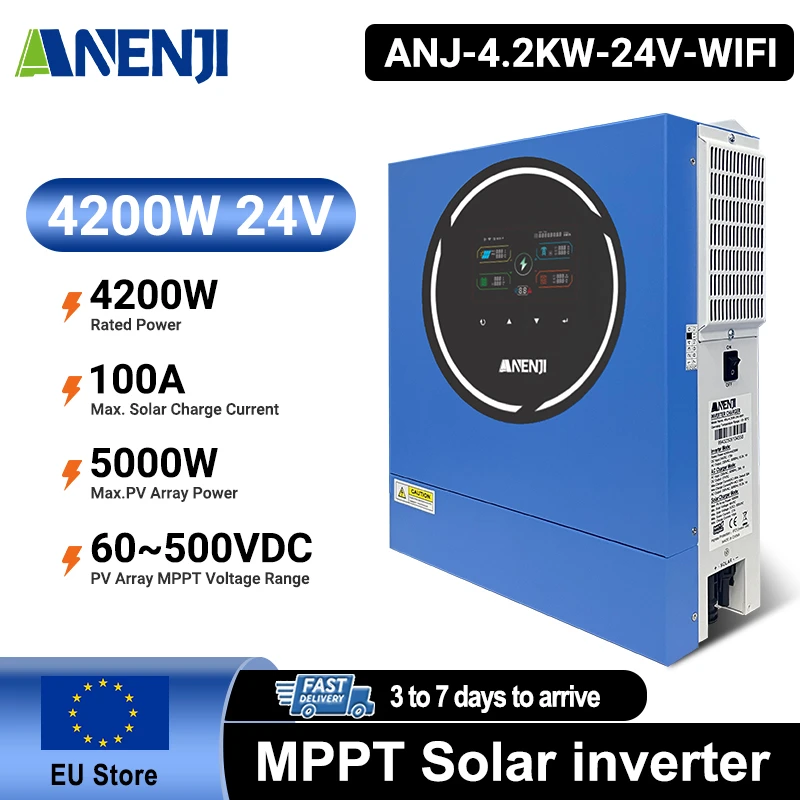

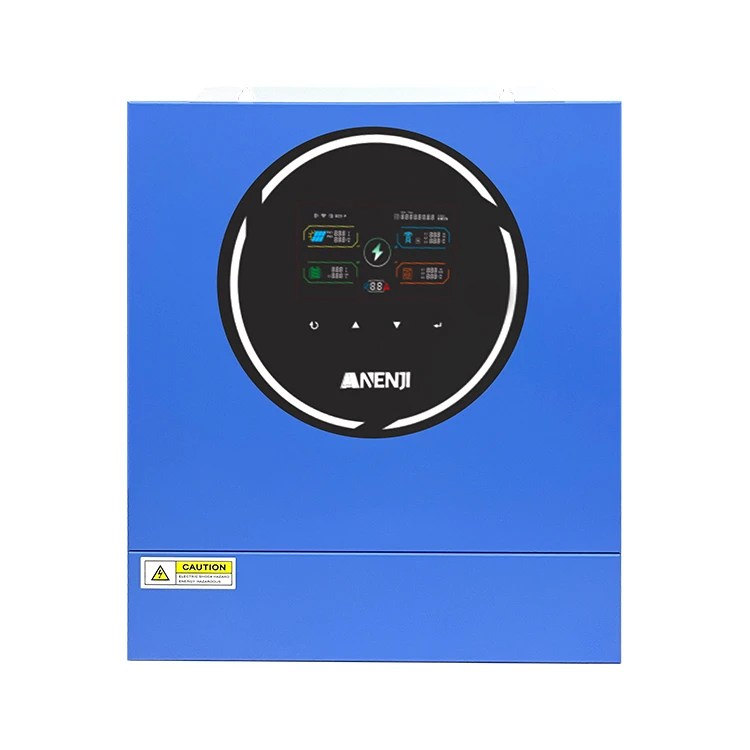

Anenji 4.2KW 24V Hybrid Solar Inverter On grid Off grid Inverter with WIFI 100A MPPT Dual Outputs

About this product

• EU and CHINA warehouses have stock availablePlease note: *The EU warehouse can only ship to European regions.*
• Click to download ANENJI 4.2KW 24V Solar Inverter Manual
• You might also need a battery? Click here:
• ANENJI 12V 100Ah LiFePO4 battery
• ANENJI 24V 100Ah LiFePO4 battery
• MODEL
• ANJ-4.2KW-24V-WIFi
• PHASE
• 1-Phase In /1-Phase Out
• Maximum PV input Power
• 5000W
• Maximum Main Output Power
• 4200VA/4200W
• Maximum Second Output Power
• 4200VA/4200W
• Maximum Total Output Power
• 4200VA/4200W
• Parallel Capability
• NO
• Lithium Battery activation
• YES(By PV or Utility)
• Lithium Battery communication
• YES(RS485)
• AC INPUT
• Nominal Voltage
• 230VAC
• Acceptable Voltage Range
• 170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
• Frequency
• 50/60 Hz(Auto sensing)
• AC OUTPUT
• Nominal Voltage
• 220/230VAC+5%
• Surge Power
• 8400VA
• Frequency
• 50/60Hz
• Waveform
• Pure Sine wave
• Dual Outputs
• Yes
• Transfer Time
• 10ms(For personal Computer);20ms(For Home Appliances)
• Peak Efficiency(PV to INV)
• 96%
• Overload Protection
• 5s@>=140%load;10s@110%~140%load
• Admissible Power Factor
• 0.6~1 (inductive or capacitive)
• BATTERY
• Battery Voltage
• 24VDC
• Floating Charge Voltage
• 27VDC
• OverCharge Protection
• 33VDC
• Charging Method
• CC/CV
• SOLAR CHARGER &AC CHARGER
• Solar Charger TYPE
• MPPT

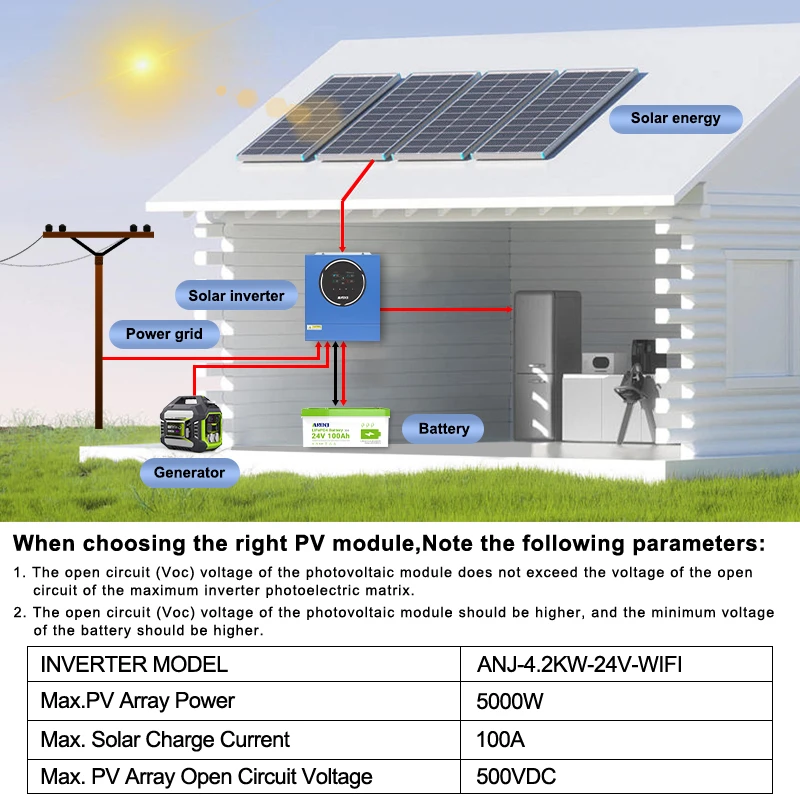

• Max.PV Array Power
• 5000W
• Max.PV Array Open Circuit Voltage
• 500VDC
• PV Array MPPT Voltage Range
• 60VDC~500VDC
• Max.Solar input Current
• 1/27A
• Max.Solar Charge Current
• 100A
• Max.AC Charge Current
• 80A
• Max.Charge Current
• 100A
• PHYSICAL
• Dimensions.DxWxH(mm)
• 312.4x350x114.5
• Package Dimensions,DxWxH(mm)
• 475x390x180
• Net Weight(Kgs)
• 8.5

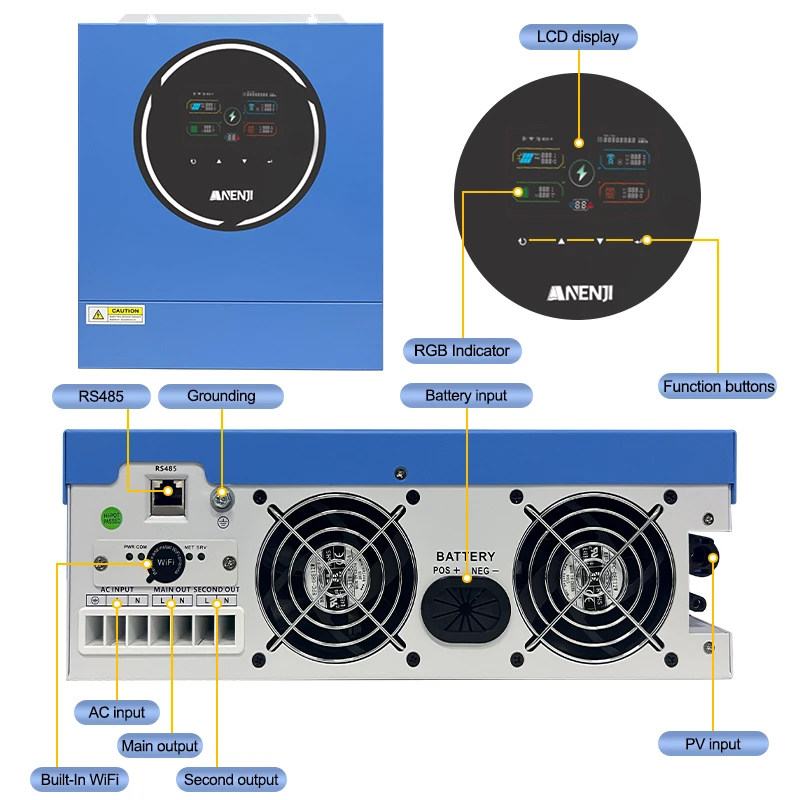

• Communication Interface
• RS485(RJ45)/RS232(DB9)
• LCD
• Colorful Screen+RGB Light
• ENVIRONMENT
• Operating Temperature Range
• -10℃ to 50°c
• Storage temperature
• -15℃~50℃
• Humidity
• 5% to 95% Relative Humidity(Non-condensing)
• Equipped With LED Capacitive Touch Screen
