Anenji 51.2V 300AH LiFePO4 Battery 16 kWh Built-in BMS Built-in Bluetooth

SKU 130201/0004

Visit the ANENJI store

GHS 31,569.50

Trade price · excl. delivery

AvailabilityOut of stock

Lead time2–3 days

DeliveryFREE

About this product

Battery Manual： 51.2V 300AH User Manual

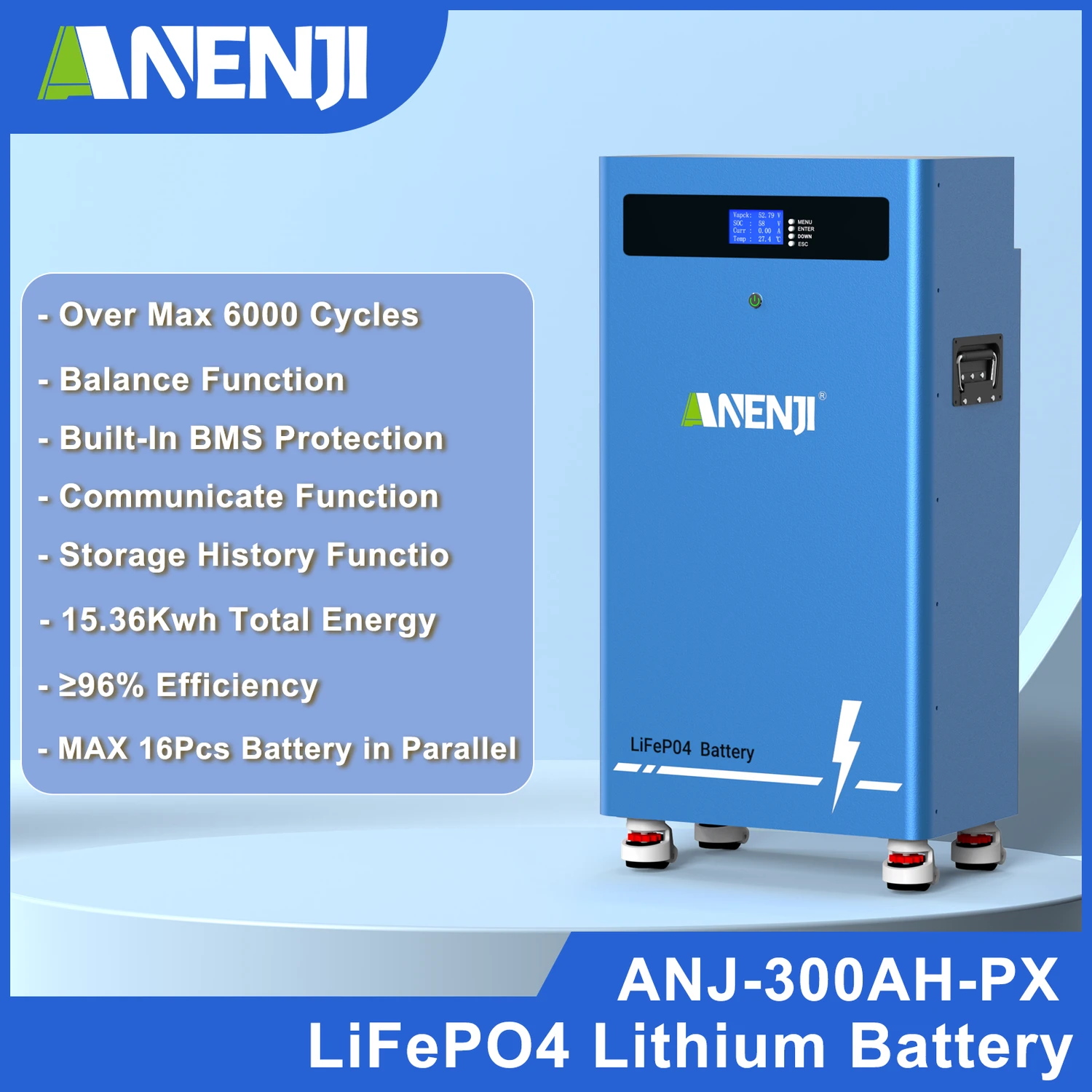

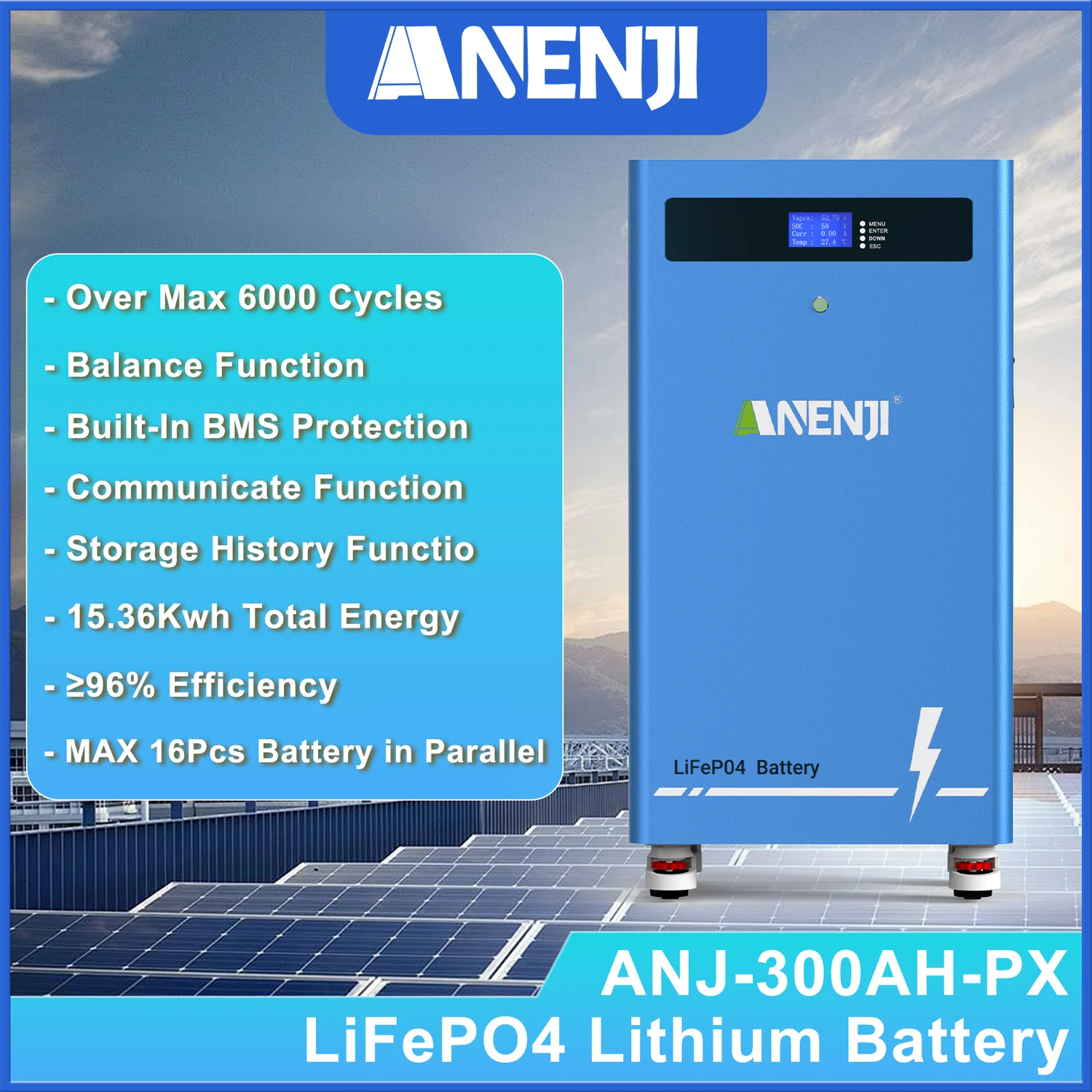

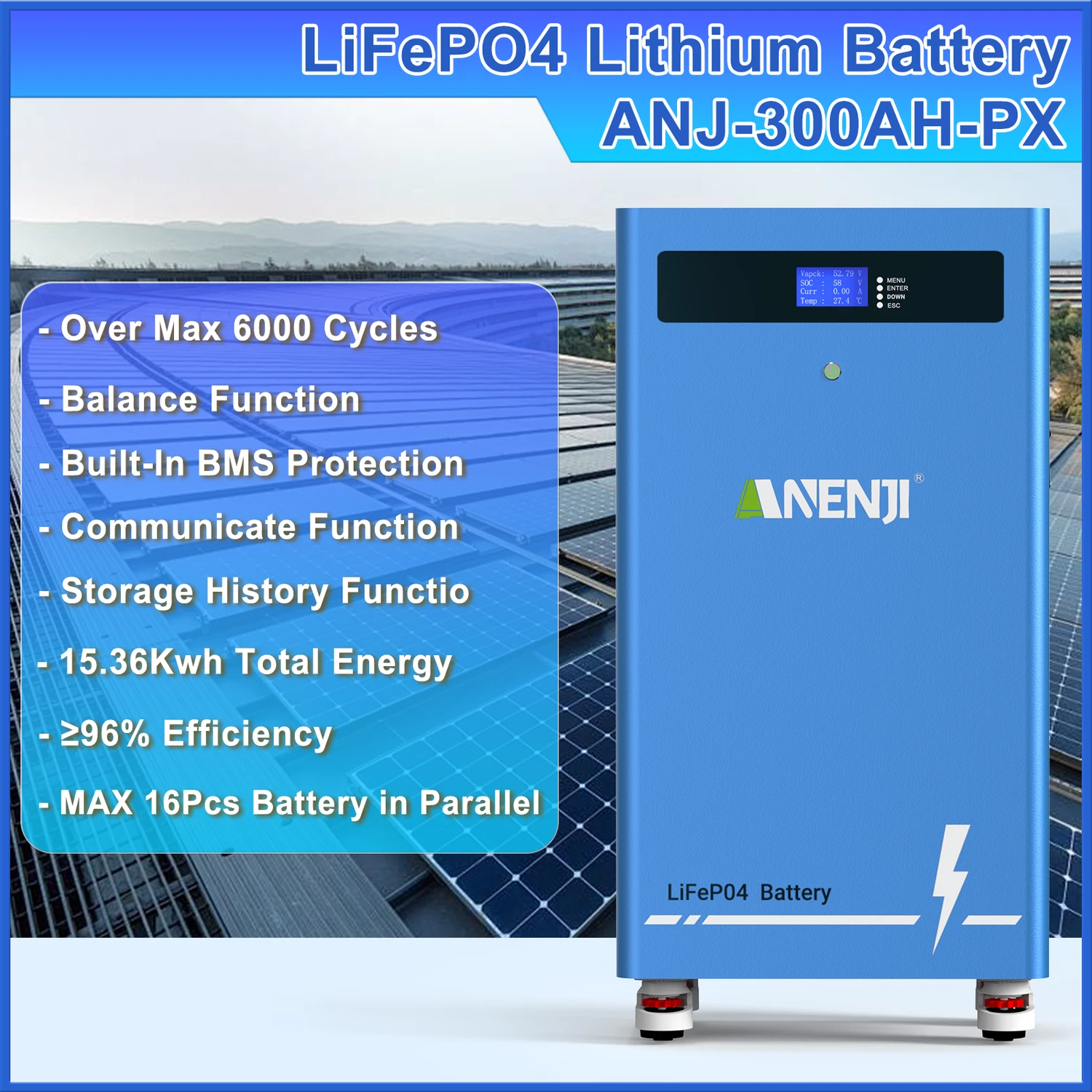

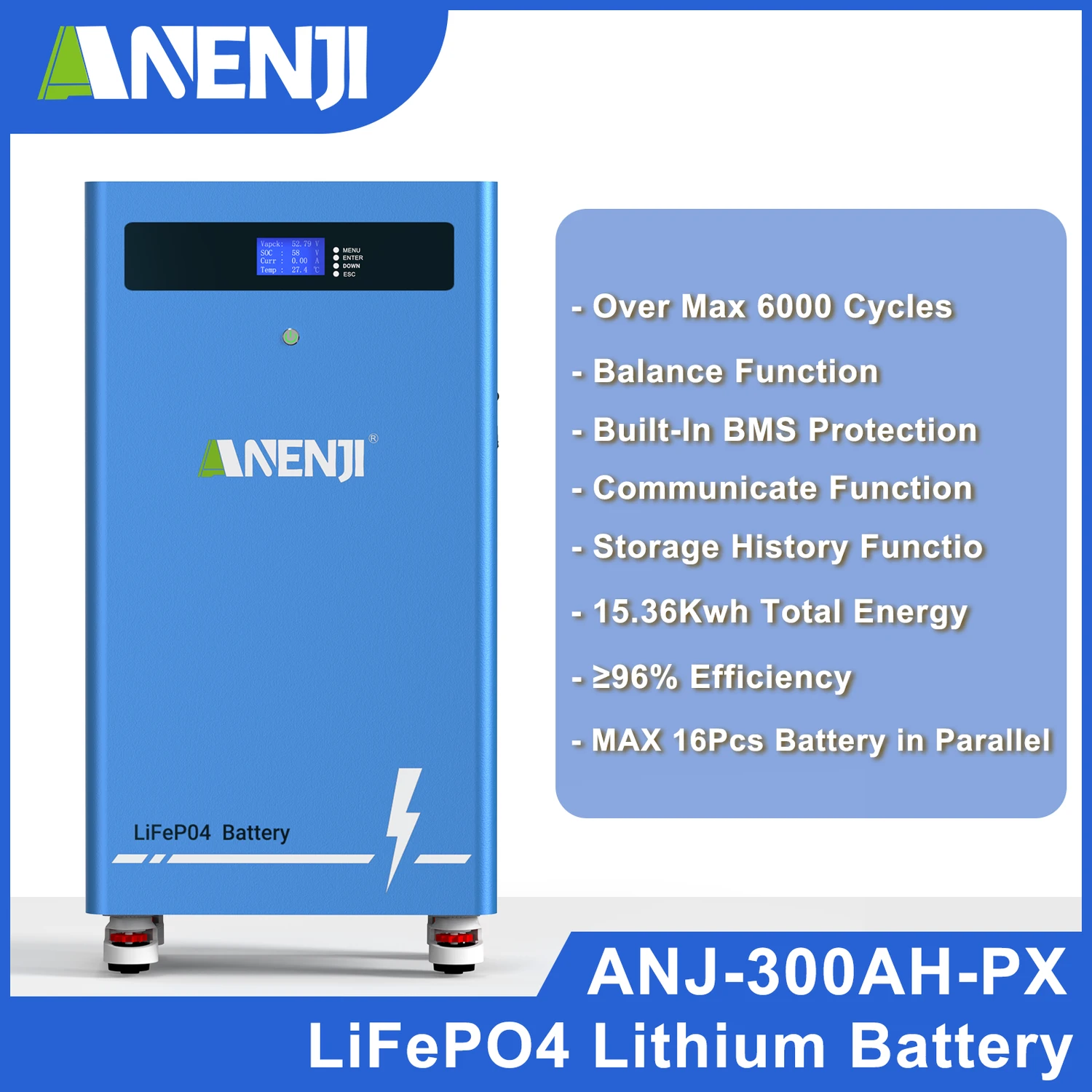

51.2V 300AH LiFePO4 Battery
Gross Weight: 126KGNet Weight: 120KG
The 51.2V 300AH LiFePO4 Battery (16kWh) is a reliable and efficient home solar energy storage system. Its rounded edges ensure safety by reducing the risk of accidental collisions.
The well-designed handles make it easy to transport and handle. Installation is simple, and the built-in BMS supports RS485/CAN communication protocols for smooth integration with your system.
With over 6000 deep charge cycles and complete certifications, this battery is both safe and dependable, providing long-lasting energy storage for your home.
NO.
ltem
General Parameter
Remark
1
Combinatjonmethod
3.2V300Ah Cell-16S1P
2
Rated Capacity
Typical:300AH
Standard dischargeafter Standardcharge (package)
Minimum:300AH
3
Factory Voltage
52V-54V
Mean OperationVoltage
4
Voltage at endof Discharge
40V
Discharge Cut-offVoltage
5
ChargingVoltage
58.4V
6
InternalImpedance
≤13mΩ
Internal resistancemeasured at AC1KHZ after 50% chargeThe measure mustuses the newbatteries that within oneweek after shipment andcycles less than 5times
7
Standard charge
Constant Current:100A
Constant Voltage:See No.5
cut-off:0.02C A
Charge time : Approx 1h
Limiting current
10A
8
Standard discharge
Constant current: 100A
end voltage: see NO.4
9
Maximum Continuous Charge Current
200A
T≥10°C
10
Maximum Continuous Discharge Current
200A
T≥10°C
11
Operation Temperature Range
Charge: 0~45℃C
Bare Cell 60+25%R.H
Discharge: -20~55
12
StorageTemperatureRange
Less than 8months :-10~35°C
at the shipment stateless than 3 months60+25%R.H.
less than 3 months60+25%R.H.-10~45°C
Less than 7day: -20~65°C
High Usable Ratio
Monitor and controlvia smartess App
Usage scenario
LiFePO4 Lithium Battery can be used in a variety of scenariosconvenient, useful, stable and safe
Hybrid Power System
Solar inverters can be used in daily life
